Silicon Carbon Batteries on Smartphones: Explained

For over three decades, lithium-ion batteries have been the backbone of our devices, continuously evolving to meet growing demands. However, this technology is now approaching its limits in terms of charge-holding capacity, signaling the need for a new alternative. Enter silicon carbon batteries a promising innovation that is denser and capable of storing more energy. These batteries are paving the way for devices that not only last longer but also maintain or even reduce their size. Here’s everything you need to know about this next-generation power source and how it could revolutionize the future of technology.

What Are Silicon Carbon Batteries?

Silicon carbon batteries represent the latest breakthrough in portable battery technology and are increasingly being adopted in smartphones. These batteries are denser than traditional lithium-ion batteries, allowing them to store more energy in the anode. Despite their higher energy density, they maintain similar or even slimmer dimensions compared to conventional lithium-ion batteries, making them an ideal choice for modern, compact devices.

By utilizing Silicon Carbon battery technology, manufacturers can incorporate higher-capacity batteries into their devices without compromising their overall form factor. Due to their higher energy density, these batteries can store approximately 25% more charge. For instance, a Silicon Carbon battery of the same size as a 5,000 mAh Li-ion battery can deliver up to 6,200 mAh of power.

While traditional Lithium-ion batteries have a maximum theoretical energy density of around 387 Wh/kg, Silicon Carbon batteries can surpass this, reaching up to 600 Wh/kg. Pure silicon alone can store an impressive 3,500 Wh/kg, but it expands rapidly, making it unsuitable for stable use. To counter this, carbon is integrated into the material, enhancing stability and overall battery performance.

How Do Silicon-Carbon Batteries Work?

Despite the name, Silicon Carbon batteries operate on the same fundamental principles as traditional Lithium-ion batteries. They still transfer Lithium ions to the cathode to generate charge. However, instead of a Graphite anode, these batteries utilize a Silicon-Carbon composite. This material is denser and capable of storing more charge, allowing for increased capacity without increasing the battery’s physical size.

The higher density of Silicon-Carbon batteries comes from the composition of the anode. In conventional Li-ion batteries, Lithium ions are stored within the Graphite anode, sliding between graphene layers, with a maximum storage ratio of 1 Lithium ion per 6 Carbon atoms. In contrast, a Silicon-Carbon composite can accommodate 15 Lithium atoms for every 3 Silicon atoms, significantly boosting energy storage capacity.

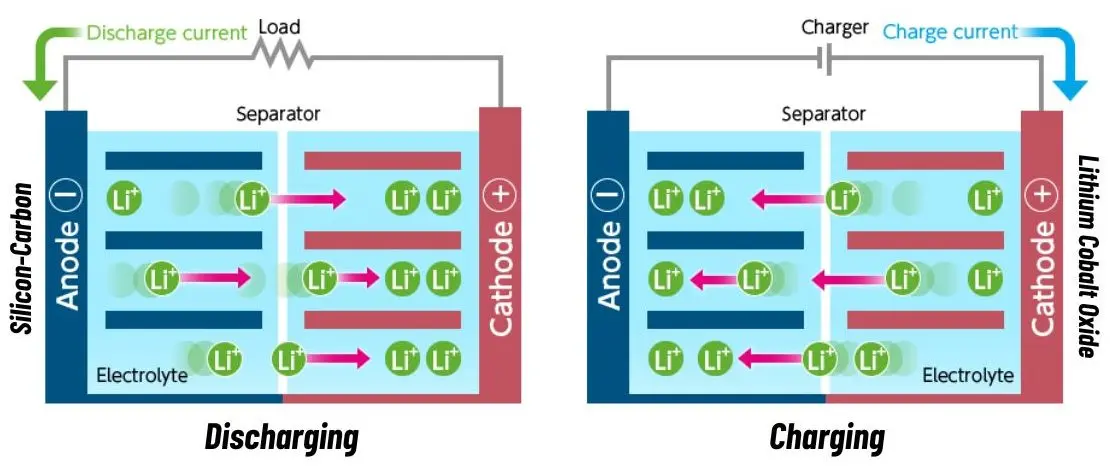

If you’re unfamiliar with how a battery works, it operates by transferring Lithium ions from the anode to the cathode, which is typically made of Lithium-based metal oxides, such as Lithium Cobalt Oxide. When you use your device, these ions flow from the anode to the cathode, generating the energy needed to power its components.

During charging, the current from your charger forces the Lithium ions to move back from the cathode to the anode, storing energy for later use. Despite their differences, both Li-ion and Silicon Carbon batteries share similar characteristics—they are lightweight, free from memory effect, and capable of lasting over a thousand charge cycles.

Advantages of Silicon Carbon Batteries

The primary advantage of Silicon-Carbon batteries lies in their significantly denser silicon-carbon composite, which allows manufacturers to pack more power into a slim cell. Since these batteries use a silicon-carbon anode instead of graphite, the absence of graphite layers enables them to charge much faster and more efficiently, supporting charging speeds of around 80W or higher without requiring a multi-cell configuration.

Additionally, the higher energy density of these batteries means manufacturers can create larger-capacity batteries or incorporate bigger batteries into devices with smaller or slimmer designs. This ensures that users don’t have to compromise on the aesthetics or portability of their devices while enjoying longer battery life.

A great example of this innovation is the OPPO Find N5, where the company successfully reduced the device’s thickness while increasing the battery capacity by an impressive 15%—from 4,850 mAh to 5,600 mAh. This demonstrates how Silicon-Carbon technology can enhance both performance and design in modern devices.

Silicon-Carbon vs Lithium-Ion: What Are the Differences?

One of the key distinctions between Silicon-Carbon and Lithium-ion batteries lies in the anode material. Traditional Lithium-ion batteries use graphite, which has seen incremental improvements in charge-holding capacity since their introduction. However, graphite is significantly less dense compared to Silicon-Carbon, and achieving faster charging speeds with graphite-based anodes typically requires a multi-cell configuration. Below is a table summarizing the differences between the two technologies:

How is Silicon Carbon Different From Silicon Carbide?

You’re absolutely right—while the terms Silicon Carbon and Silicon Carbide might sound similar and are both related to battery and charging technology, they refer to fundamentally different materials and applications. It’s understandable that people might confuse them, especially if they’re not deeply familiar with the underlying technology. However, it’s surprising to see someone like MKBHD, who reviews cutting-edge tech like the Galaxy S25 Ultra and electric cars, mix them up.

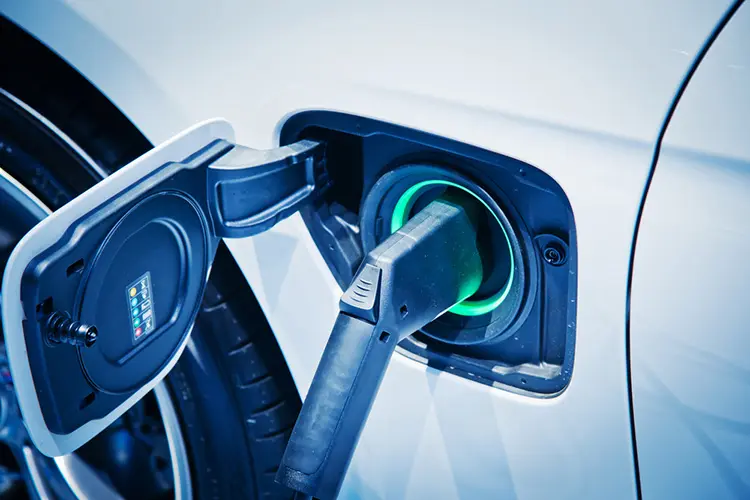

Silicon Carbon is primarily used in batteries, while Silicon Carbide is mainly utilized in power supplies such as chargers, inverters, and other accessories. Silicon Carbide is more comparable to Gallium Nitride (GaN), a material widely used in smartphone chargers. However, Silicon Carbide scales to meet industrial power supply demands or fast-charging requirements for electric vehicles. This is due to its exceptional ability to handle high voltages and its superior thermal conductivity, making it ideal for high-performance applications.

Phones That Use Silicon Carbon Batteries

Many leading smartphone brands, including OnePlus, Xiaomi, Realme, OPPO, and Honor, have already adopted Silicon Carbon batteries in their devices. For instance, the latest OnePlus 13 features a massive 6,000 mAh battery while maintaining a slimmer profile compared to its predecessor. Similarly, Tecno’s Spark Slim incorporates a 5,200 mAh battery despite being just 5.75 mm thick, showcasing the advantages of this new technology. Another standout example is the OPPO Find N5, where the company utilized Silicon-Carbon batteries to achieve an impressively thin design in a foldable device. These advancements highlight how Silicon-Carbon technology is enabling larger battery capacities without compromising on sleek, compact designs.

While Chinese manufacturers are currently leading the charge, it will likely take another year or two for Silicon Carbon batteries to make their way into devices like Pixels and Samsung’s Galaxy lineup. It’s disappointing that the upcoming Galaxy S25 Edge won’t feature this advanced battery technology, and it might have been ideal for Samsung to delay its launch to incorporate it. However, reports indicate that the Korean tech giant could start adopting Silicon Carbon batteries as early as next year, signaling a promising shift in the near future.

Are Silicon-Carbon Batteries Less Polluting?

We’d love to explore the environmental advantages of Silicon Carbon batteries over traditional Li-ion, but there isn’t enough data to make definitive claims. On the surface, Silicon appears to be an eco-friendly alternative since it’s abundant and widely available. However, the Silica used in these batteries must be of the highest purity, which requires significant energy to refine.

Additionally, Silicon Carbon batteries still rely on Lithium and Cobalt, both of which require extensive water usage for extraction. While they may offer a slight environmental improvement over standard Li-ion batteries, they are not entirely sustainable.

What are your thoughts on Silicon Carbon batteries? Let us know in the comments below!
